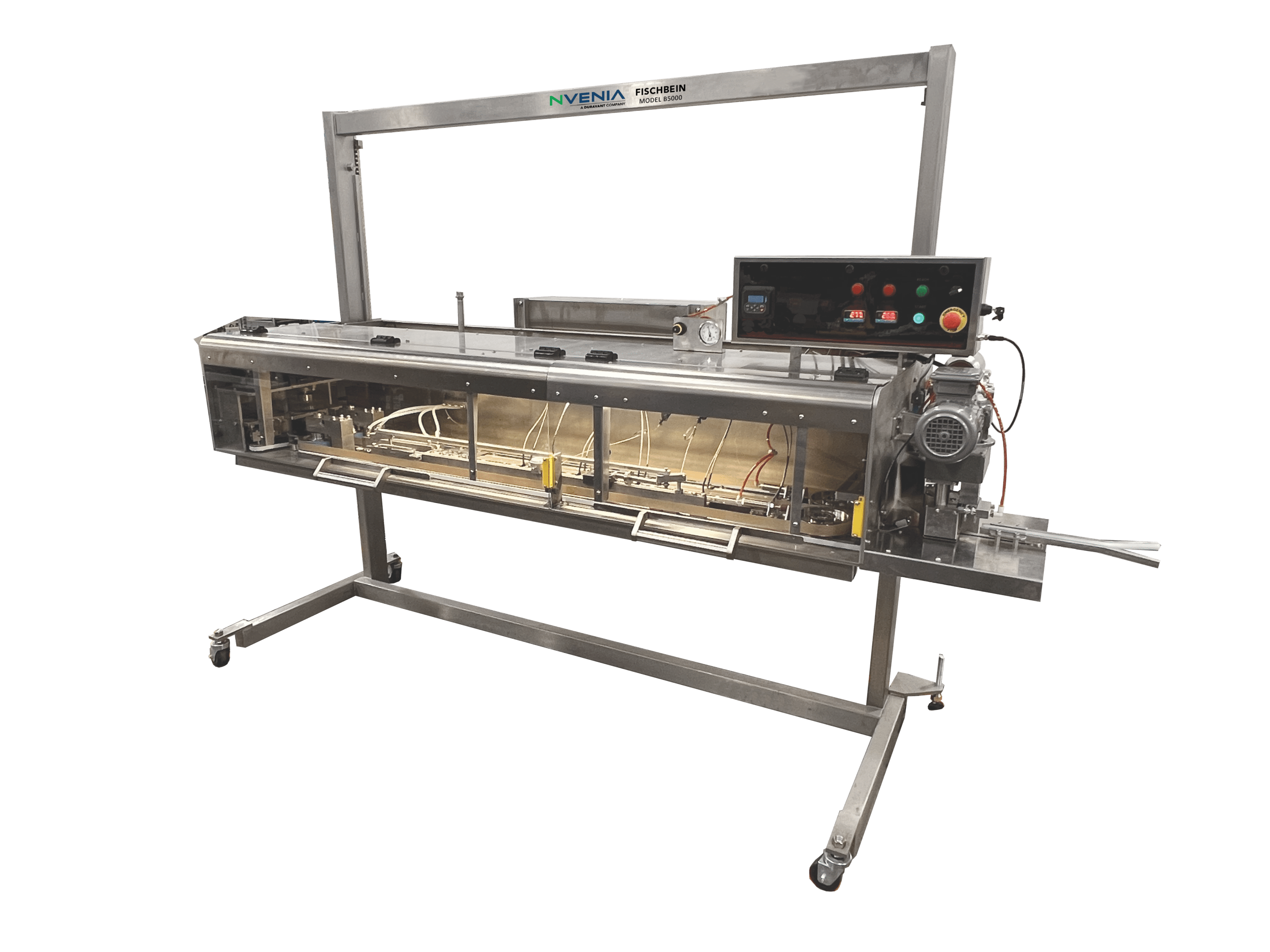

Fischbein Brand Band Sealer – B5000SS
Our nVenia Fischbein B5000SS continuous band sealer is designed for the most challenging high production industrial bagging operations closing heavy weigh polyethylene and polypropylene gusseted bags, pillow bags, and pouches at up to 100 linear feet per minute. This performance is achieved by using a total of five heater manifolds – selectable by the user in a bank of 2 and an additional bank of 3 – allowing the user to tailor the seal performance to match the speed of their production. This low maintenance band sealer features forced air cooling of seal for downstream handling, a removal sealing section for easy maintenance and cleaning access, quick belt replacement design, user friendly controls with easy to read digital temperature display, an adjustable height pedestal, stainless steel construction and NEMA 4X rated electrics.
Are you interested in this product?
We are here to help.
Featured Video
Features
Standard Features
- 304 Stainless steel frame, mechanical parts, valves and control box
- NEMA 4X corrosion resistant – gears, shafts, brackets and steel parts are upgraded to stainless steel or nickel plating. All fasteners are stainless steel. Features NEMA 4X rated stainless steel, wash down electrical enclosures, electric motors & closed cartridge heaters
- Sealing Width: 3/8″ wide (sealing widths up to ½” wide available)
- Digital temperature display in Fahrenheit/Centigrade
- 14” belt driven infeed
- Right to left operation direction
- Adjustable sealing height from 32.5 inches to 56.5 inches
- Variable speed drive up to 100 linear feet per minute
- Automatic temperature shutdown
- 2 temperature controllers – 1 for each zone
- NEMA 4X rated electronics
- Standard Voltage – 460V / 3Ph / 60 Hz
- Teflon Fiberglass sealing bands
- Heat Bars: five pair (38” total length)
- Cooling bars for downstream handling
- Variable speed drive
- Digital temperature control
Options
- Bag Top Trimmer
- Airwash bag top air clean + top trimmer
- Water cooling system to minimize dust ingress
- Motorized height adjustment
- Additional creaser wheels:
- 1/4”
- 3/8”
- 1/2”
- Additional temperature controllers – maximum 4 total
- Conveyor control, VFD (1 HP)
- Heater Fault Light
- Left to right feed direction
- 230V/ 3Ph / 60Hz
Bag Types
Polyethylene and Polypropylene
Gusseted
Pillow
Pouch
Standard Specs
Standard Specs
Dimensions
78”H x 103”L x 37”D, shipping weight 1500 lbs (1900 lbs in SS)
Speed
Up to 100 Linear Feet Per minute
Electric
230V / 3Ph / 60Hz
460V / 3Ph / 60Hz (optional)
575V / 3Ph / 60Hz (optional)
FLA
30.0 A at 230V
15.0 A at 460V
