ARPAC Brand Pro Model Pallet Wrapper
Our ARPAC Brand Pro Model is a Semi-Automatic Turntable style pallet wrapper, representing one of the most versatile and cost-effective solutions in the market. Like all of our stretch wrappers, the Pro Model is constructed of heavy-duty, welded steel structures designed for long life and machine stability. Complete with easy to use Allen-Bradley controls, the Pro Model is an ideal solution for many applications.

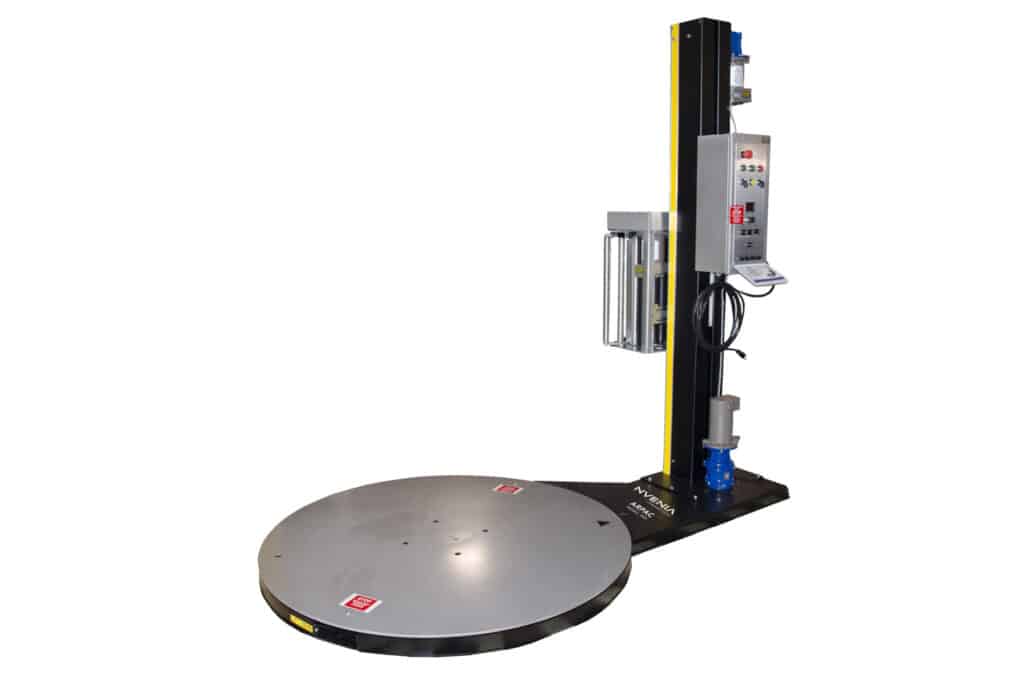

The Pro Model is available in both low profile and high profile versions with a load capacity of 4,000 lb. The chains on this model are enclosed within the tower frame, ensuring safer operation. The machine is available with a variety of options such as the Wrap-N-Weigh feature that integrates wrapping and weighing operations into the machine along with a printer option.
Are you interested in this product?
We are here to help.
Featured Video
Features
Standard
- Heavy-duty, welded steel construction (no plastic panels) designed for long life
- ANSI 50 turntable chain drive
- ANSI 40 chain lift drive
- Long-range photo eye for automatic load height sensing
- Adjustable top and bottom illuminated LED wrap counters
- Manual jog control for turntable
- Cycle pause feature
- Allen-Bradley® power, control, and safety components
- Allen-Bradley® MicroLogix™ PLC
- EZ-Load® film pre-stretch dispenser for 20″ film rolls
- Automatic top film over wrap control feature (TOC)
- Dual anti-static film rollers with manufacturer’s lifetime warranty
- Electronic film tension adjustment control on control panel
- Dancer bar variable-corner compensation
- UL/CSA approved components
Options
- Extended film towers for wrapping taller loads exceeding standard machine capability
- Multiple turntable sizes
- 6,000 lb. load capacity
- 30″ film roll
- Wrap-N-Weigh scale built into platform
- Split frame construction to increase film tower clearance for oversized loads
- Low-profile and High-profile turntables
- Access ramps to assist loading of pallets
- Automatic film tear device
- Cycle counter
- Adjustable roping guide
- Bottom rollover bar
- Foot pedal control
- Remote start
- Extended umbilical cords for split-frame option
- Top platen device to stabilize tall or light loads during rotation
Standard Specs
Standard Specs
Speed
Up to 12 RPM rotating turntable can deliver 25-40 loads per hour
Variable carriage speeds up to 21 FPM
Electrical Power Requirements
120 VAC, 1 Ph, 60 Hz, 12 A
Compressed Air Requirements
None
Turntable Size
Low Profile: 60″ Diameter Standard
72″ Diameter Optional
90″ Diameter Optional
High Profile: 50″ Square Standard
70″ Square Optional
50″ x 90″ Rectangular Optional*
*not available with Wrap-N-Weigh option
Max Load Height
Low Profile: 81″ H Standard
93″ H, 105″ H, and 117″ H Optional
High Profile: 74″ H Standard
86″ H, 98″ H, and 110″ H Optional
Film Roll Diameter
20”
Other Film Specifications
Film pre-stretch capability from 150% to 300% stretch factor (200% standard)
